RIVDOM^® eBZ 2 FERO

Battery-powered setting tool for blind rivets

HONSEL offers more. The Rivdom eBZ 2 FERO

A typical example of perfectly matched components. Here for high-strength blind rivets from 4.8 to 6.4 mm.

The modified clamping mechanism with clamping jaws matched to the grooves of the rivet mandrel guarantees an optimum form fit.

Contact us!

Questions about our products?

Contact us!

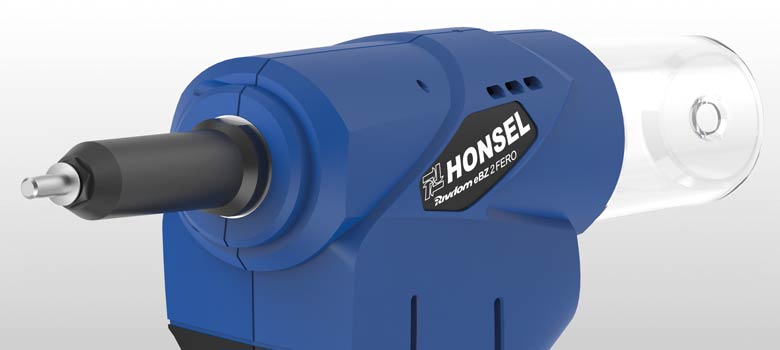

Setting tool for blind rivets Rivdom eBZ 2 FERO

30 mm
Stroke

6.4 mm
Diameter

Weight 2,000 g
1,600 g without battery

20.000 N
Setting force

Processing blind rivets

Artikelnr.:	4,8	6,4
aluminum	✓	✓
steel	✓	✓
stainless steel A2	✓	✓

Artikelnr.:	4,8	6,4
aluminum	✓	✓
steel	✓	✓
stainless steel A2	✓	✓

Processing possible, Processing optional possible

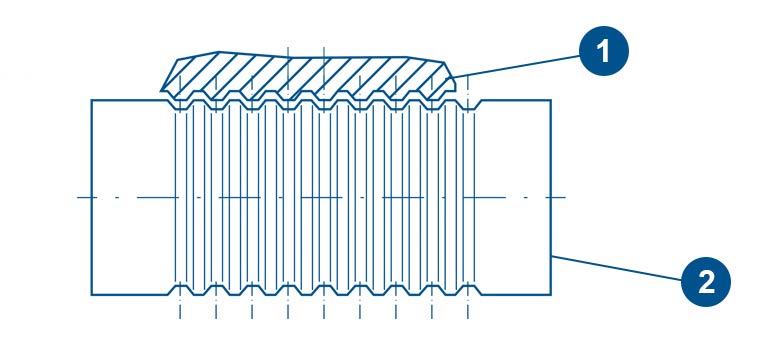

Clamping jaw and mandrel - technical drawing

1. Clamping jaw | 2. Mandrel

Benefits of HONSEL system component clamping jaws

Minimised wear of the actual clamping jaws
Greatly reduced tool wear
Optimum grip. Less or no slipping of the clamping jaws on the fastener
The geometry allows earlier gripping of the mandrel and thus an ideal grip angle for full power transmission of the clamping jaws to the mandrel
Thanks to the optimised geometry, the short mandrels commonly produced and on the market can be reliably gripped
As a result, extended nosepieces can also be used

Individual return mode setting

When using manual return mode, the trigger has to remain pressed until the rivet is sheared. When
the trigger is released, the tool moves back to the front starting position.

In addition, Rivdom eBZ 2 FERO offer an automatic return mode. Here the trigger merely has to be pressed slightly to start the automatic setting process. Immediately after the drop in the measured force with the shearing of the rivet mandrel, the tool moves back automatically to the starting position to keep the riveting cycle as short as possible.

Individual return mode setting for faster riveting

The latest motor technology

Brushless and wear-free.

Practically all HONSEL battery riveters have modern brushless DC (BLDC) motors developed in-house. They guarantee a practically wear-free, very long life cycle. Low current consumption and reduced heat development increase the battery life and efficiency.

Automatic mandrel removal

No tiliting movement after the setting process necessary!

Retainer nosepieces ensure that the rivet cannot fall out of the tool. Very fast. Very comfortable.

Retainer nosepieces

Watch video

Video with confirmation

You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .

Watch video

Outstanding ergonomics

Rubberised universal handle for all hand sizes. Perfect housing geometry.

Rubberised universal handle from RivdomONE, Rivdom eBZ 2 and Rivdom eBZ 3.

Safety

Integrated stud holder

The cordless riveters from Honsel cannot be operated without mandrel container or cover cap.

Practical details

Belt clip (alternatively rivet application plate)

Perfected battery management

The powerful HONSEL Li ion batteries are fully charged in less than 30 minutes – the 90%
charge is reached after only approx. 20 minutes – so that the charging cycle is always shorter
than the battery-consuming working time!
