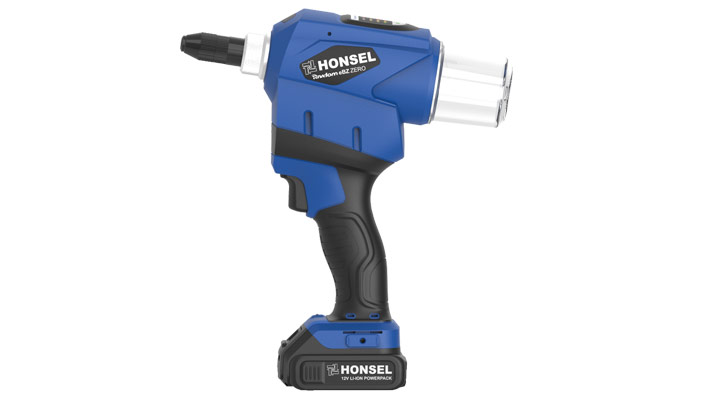

Extremely lightweight. ultra compact.
Optimized and specially designed for the world’s most widely used blind rivet sizes up to 4.0 mm diameter.
In focus. Maximum weight reduction and compact dimensions thanks to the familiar RivSmart housing. The outstanding ergonomics and unrivalled light weight of only 1.3 kg guarantee the highest level of comfort!
You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .
Weight
1,300 g
1,000 g without battery
6,800 N
Setting force
20 mm
Hub
For blind rivets
up to
4.0 mm
diameter
Setting process
< 1 second
30 rivets
in one minute possible
> 1.200
Fasteners per 2.0 Ah battery charge
210 mm
Length without mandrel container
24 minutes
Charging time for
80 % charge
Fully charged in
35 minutes (2.0 Ah)
When using manual return mode, the trigger has to remain pressed until the rivet is sheared. When the trigger is released, the tool moves back to the front starting position.
In addition, Rivdom and RivSmart eBZ tools offer an automatic return mode. Here the trigger merely has to be pressed slightly to start the automatic setting process. Immediately after the drop in the measured force with the shearing of the rivet mandrel, the tool moves back automatically to the starting position to keep the riveting cycle as short as possible.
You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .
Rubberised universal handle for all hand sizes. Perfect housing geometry.
Integrated stud holder
Belt clip (alternatively rivet application plate)
The powerful HONSEL Li ion batteries are fully charged in less than 30 minutes – the 90%
charge is reached after only approx. 20 minutes – so that the charging cycle is always shorter
than the battery-consuming working time!
LED-illuminated riveting point
The innovative system packaging solution. The HONSEL L-Boxx is also compatible with the L-Boxxes from other manufacturers.
Art.-no. 320210000000-010-1 (1x battery 12V)
Art.-no. 320210000000-020-1 (2x battery 12V)
