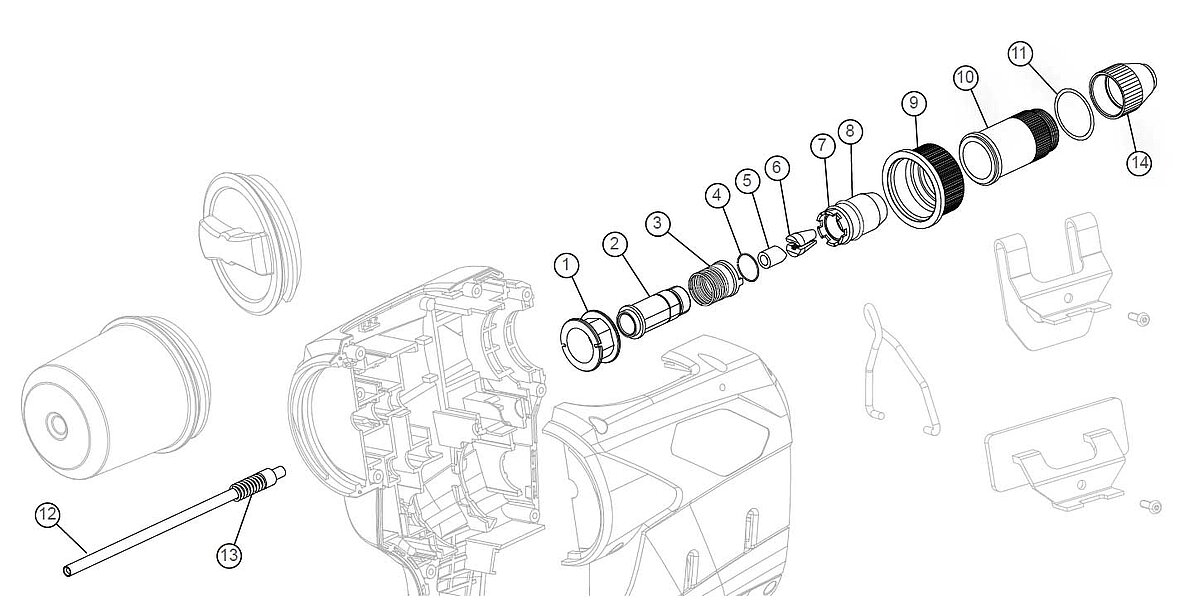

ACCESSORIES AND SPARE PARTS RivSmart eBZ ZERO S
For smooth operation of our battery powered setting tools, please be sure to observe the information in our operating manuals!
Spare parts lists as PDF can be found in our Downloadcenter
Accessories
| Item no. | Description |
| 321200000031 | Mandrel container S (5.5 cm) |
| 321300100031 | Mandrel container L (8.0 cm) |
| 321401000030 | Mandrel container L+ (8.0 cm) |
| 321501000030 | Mandrel container XL+ (11.0 cm) |
| 321200000018 | Union ring (blue) |
| 321200000018 | Union ring (gold) |
| 321200000018 | Union ring (red) |
| 321200000018 | Union ring (black) |
| 321200000029 | Hanger |
| 321200000006 | Belt clip |
| 321200000005 | Name plate |
| 321401000004 | Cover cap |
Special nose pieces
Extended nose pieces for recessed riveting points
| Item no. | Description |
| 321200932070 | Extended nose piece (7 mm) 3.0/3.2 mm |
| 321200940070 | Extended nose piece (7 mm) 4.0 mm |
| 321200932200 | Extended nose piece (20 mm) 3.0/3.2 mm |
| 321200940200 | Extended nose piece (20 mm) 4.0 mm |
Suitable for e.g. multigrip blind rivets with extended mandrel.
Retention nose pieces
Retention nose pieces available as options ensure that the rivet cannot fall out of the tool so that one hand remains free, e.g. to hold the part.
Furthermore, the pretension of the retention nose piece ensures that sheared rivet mandrels are “automatically” pushed into the collecting bin by the following mandrel – tilting of the tool is therefore not necessary and the riveting process is accelerated.
| S | No. | Item no. | Description |
| ≤1,7 | 321120000224-0-1 | SET from position 1, 2 and 3 | |
| 1 | 321200000132-01-1 | Retention nose piece 2.4/3.2 mm | |
| 2 | 321200000017-0-4 | Guide sleeve | |
| 3 | 321200000049-0-4 | Mandrel discharge tube |
| No. | Item no. | Description | |
| ≤2,2 | 321120000232-0-1 | SET from position 1, 2 and 3 | |
| 1 | 321200000134-01-1 | Retention nose piece 3.0/3.2 mm | |
| 2 | 321200000017-0-3 | Guide sleeve | |
| 3 | 321200000049-0-3 | Mandrel discharge tube |
Extended front sleeves
Drill holes are often so deep in parts that even extended nosepieces are not sufficient to reach them.
For these applications, extended front sleeves with correspondingly modified clamping mechanisms are available for most HONSEL battery riveters.
As with the standard sleeves, these are very narrow with only 21 mm diameter so that drill holes can be reached even in confined installation situations.
| S | Item no. | Description |
| 321200000072-0-1 | 1x Extension piece 80 mm without mandrel discharge tube | |
| ≤1,7 | 321200000072-01-4 | 1x Extension piece 80 mm and mandrel discharge tube |
| ≤2,2 | 321200000072-01-3 | 1x Extension piece 80 mm and mandrel discharge tube |
| ≤2,7 | 321200000072-01-2 | 1x Extension piece 80 mm and mandrel discharge tube |
| ≤1,7 | 321200000072-02-4 | 2x Extension piece 80 mm and mandrel discharge tube |
| ≤2,2 | 321200000072-02-3 | 2x Extension piece 80 mm and mandrel discharge tube |
| ≤2,7 | 321200000072-02-2 | 2x Extension piece 80 mm and mandrel discharge tube |
1x extension 80 mm = sleeve length 120 mm, total tool length 204 mm
2x extension 80 mm = sleeve length 200 mm, total tool length 284 mm
