Axial clamp cap, steel | zinc plated

Axial clamp rings

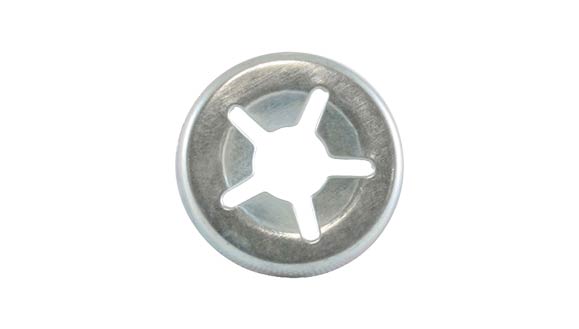

Axial clamp cap made of steel
Axial clamp cap made of steel
Axial clamp cap technical drawing
Questions about the products?

Contact us!

Steel zinc plated

Available sizes
ø 3,0 ø 4,0 ø 5,0 ø 6,0 ø 7,0 ø 8,0

Product details

ø 3,0
Item no.: D: H: S: CAD:
10820030110 11,0 1,3 0,2
10820030110
  • Teeth: 4
  • Pull off force: 200 N
Please wait until the CAD models are generated.
CAD data to
Close
Axial clamp cap, steel | zinc plated

ø 4,0
Item no.: D: H: S: CAD:
10820040110 11,0 1,3 0,2
10820040110
  • Teeth: 5
  • Pull off force: 400 N
Please wait until the CAD models are generated.
CAD data to
Close
Axial clamp cap, steel | zinc plated

ø 5,0
Item no.: D: H: S: CAD:
10820050110 11,0 1,3 0,2
10820050110
  • Teeth: 6
  • Pull off force: 600 N
Please wait until the CAD models are generated.
CAD data to
Close
Axial clamp cap, steel | zinc plated

ø 6,0
Item no.: D: H: S: CAD:
10820060150 15,0 1,6 0,25
10820060150
  • Teeth: 6
  • Pull off force: 800 N
Please wait until the CAD models are generated.
CAD data to
Close
Axial clamp cap, steel | zinc plated

ø 7,0
Item no.: D: H: S: CAD:
10820070150 15,0 1,6 0,25
10820070150
  • Teeth: 6
  • Pull off force: 800 N
Please wait until the CAD models are generated.
CAD data to
Close
Axial clamp cap, steel | zinc plated

ø 8,0
Item no.: D: H: S: CAD:
10820080150 15,0 1,6 0,25
10820080150
  • Teeth: 6
  • Pull off force: 800 N
Please wait until the CAD models are generated.
CAD data to
Close
Axial clamp cap, steel | zinc plated
