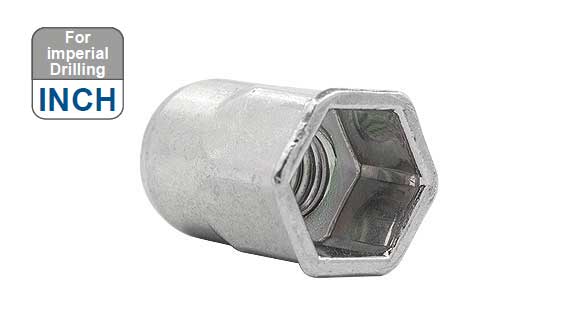

Blind rivet nut HEXATOP-KLSK - for imperial drilling
Blind rivet nut partial hexagonal
Video with confirmation
You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .
Product details
M4
| Item no.: | Shaft length: | Grip range: | CAD: | |
|---|---|---|---|---|
| 10893040200 | 10,0 mm | 0,5 - 2,0 mm | 10893040200 | 10893040200-01 |
- Head height (k): 0,5 mm
- Wrench size: 6,0 mm
- Max. length after setting (l1 max.): 6,5 mm
- Min. tightening torque: 3 Nm
- Min. axial tensile strength: 5400 N
- Wrench size 2: 7,0
M5
| Item no.: | Shaft length: | Grip range: | CAD: | |
|---|---|---|---|---|
| 10893050300 | 12,5 mm | 0,6 - 3,0 mm | 10893050300 | 10893050300-01 |
- Head height (k): 0,5 mm
- Wrench size: 7,0 mm
- Max. length after setting (l1 max.): 9,0 mm
- Min. tightening torque: 6 Nm
- Min. axial tensile strength: 9000 N
- Wrench size 2: 8,0
M6
| Item no.: | Shaft length: | Grip range: | CAD: | |
|---|---|---|---|---|
| 10893060300 | 15,5 mm | 0,5 - 3,0 mm | 10893060300 | 10893060300-01 |
- Head height (k): 0,6 mm
- Wrench size: 9,0 mm
- Max. length after setting (l1 max.): 10,0 mm
- Min. tightening torque: 11 Nm
- Min. axial tensile strength: 15000 N
- Wrench size 2: 10,5
M8
| Item no.: | Shaft length: | Grip range: | CAD: | |
|---|---|---|---|---|
| 10893080300 | 18,0 mm | 0,5 - 3,0 mm | 10893080300 | 10893080300-01 |
- Head height (k): 0,6 mm
- Wrench size: 11,0 mm
- Max. length after setting (l1 max.): 11,5 mm
- Min. tightening torque: 20 Nm
- Min. axial tensile strength: 20000 N
- Wrench size 2: 11,5
M10
| Item no.: | Shaft length: | Grip range: | CAD: | |
|---|---|---|---|---|
| 10893100400 | 22,5 mm | 0,5 - 4,0 mm | 10893100400 | 10893100400-01 |
- Head height (k): 0,7 mm
- Wrench size: 13,0 mm
- Max. length after setting (l1 max.): 12,5 mm
- Min. tightening torque: 32 Nm
- Min. axial tensile strength: 30000 N
- Wrench size 2: 14,4
