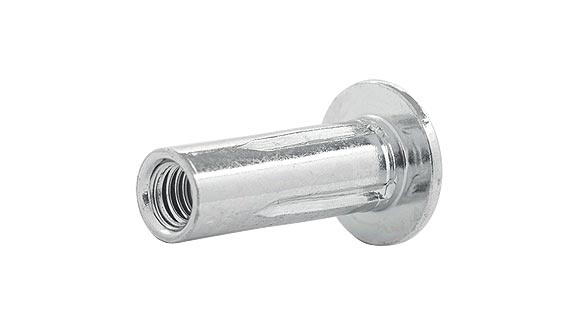

Folding blind rivet nut SFM-PL
Folding blind rivet nut
Video with confirmation
You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .
Product details
M5
| Item no.: | Shaft length: | Grip range (mm): | CAD: |
|---|---|---|---|
| 10816050450 | 22,0 | 0,5 - 4,5 mm |

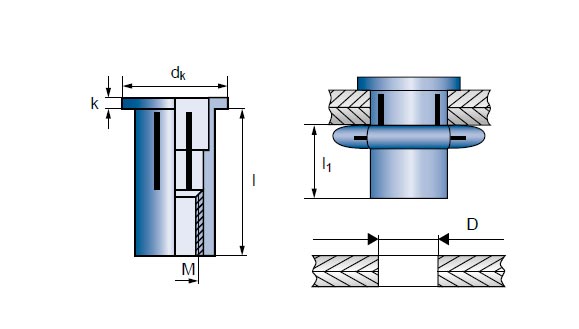

- Head diameter (dk): 12,7 mm
- Head height (k): 1,0 mm
- Max. length after setting (l1 max.): 8,3 mm
- Shaft diameter (D): 7,5 mm
- Bore hole diameter: 7,6 mm
- Min. tightening torque: 9 Nm
- Min. axial tensile strength: 9800 N
M6
| Item no.: | Shaft length: | Grip range (mm): | CAD: |
|---|---|---|---|
| 10816060710 | 25,7 | 0,5 - 7,1 mm |
- Head diameter (dk): 16,4 mm
- Head height (k): 1,6 mm
- Max. length after setting (l1 max.): 11,7 mm
- Shaft diameter (D): 8,8 mm
- Bore hole diameter: 8,9 mm
- Min. tightening torque: 12 Nm
- Min. axial tensile strength: 15000 N
M8
| Item no.: | Shaft length: | Grip range (mm): | CAD: |
|---|---|---|---|
| 10816080710 | 28,9 | 0,5 - 7,1 mm |
- Head diameter (dk): 19,6 mm
- Head height (k): 1,6 mm
- Max. length after setting (l1 max.): 13,6 mm
- Shaft diameter (D): 11,1 mm
- Bore hole diameter: 11,2 mm
- Min. tightening torque: 21 Nm
- Min. axial tensile strength: 27000 N
M10
| Item no.: | Shaft length: | Grip range (mm): | CAD: |
|---|---|---|---|
| 10816100710 | 31,0 | 0,5 - 7,1 mm |
