Blind rivet nut Honsel crimpSEAL

SELF-SEALING BLIND RIVET NUT
HONSEL crimpSEAL

Self-sealing blind rivet nut - Sealed. Secure. Efficient.

Reliable sealing without additional sealant - developed for demanding applications in industry and automotive.

[Translate to english:] Siegel Honsel-Norm TL 6.0.01.0
Watch video

Video with confirmation

You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .

Watch video

Seals on
the bore wall
and surface of
the component

Suitable for
vibratory feeders

Environmentally
friendly & robust:
PFAS-free and
temperature-resistant

Loss-proof

Mechanical sealing - without any sealant

The HONSEL BLIND RIVET NUT crimpSEAL ensures reliable sealing directly on the component and within the bore - entirely without additional sealant. Neither sealing rings nor injection moulding are required.

The sealing effect is created by a circumferential chamfer that presses into the bore during the setting process, as well as by a sealing ring positioned beneath the head, which - depending on the component material - presses into the component or deforms against the surface to create a seal.

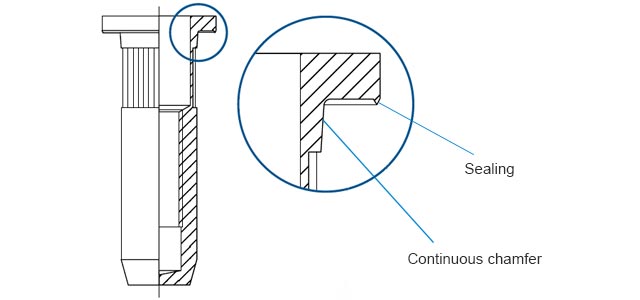

The blind rivet nut "crimp Seal" has a mechanical sealing

Explanation of sealing performance

[Translate to english:] Blindnietmutter HONSEL crimpSEAL im Querschnitt

1. Chamfer presses into the material

2. Circumferential ring presses into/onto the material

3. Uniform circumferential contact of the sealing bead

[Translate to english:] Blindnietmutter crimpSEAL: Simulation von dem Setzvorgang.

The setting process involves two independent sealing surfaces: the chamfer on the shank seals the bore inlet. The circumferential ring seals the component surface from above.

Advantages over blind rivet nuts with additional sealant

  • Reliable sealing in the bore and on the surface.
  • No seal can be lost, as there is no additional component.
  • Suitable for vibratory bowl feeders.
  • No risk of sealing material ageing.
  • PFAS-free - safe to use.
  • Temperature-resistant for a wide range of applications.
  • Bore dimensions in the components match those for standard blind rivet nuts.
  • The blind rivet nuts are fully interchangeable 1:1, even in ongoing production series.
  • Recyclable

Available versions

The M5, M6 and M8 sizes have been extensively simulated and practically tested across the standard clamping ranges of 0.5 to 5.0 mm for general function, compliance with technical values, and sealing performance in accordance with HONSEL TL 6.0.01.0.

SETTING TOOLS FOR HONSEL crimpSEAL

Battery powered setting for rivet nuts Rivdom eVNG 2
Rivdom eVNG 2

The ultimate solution for cordless setting of blind rivet nuts! Uncompromisingly tough.

Rivdom eVNG 2
Pneumatic setting tool for blind rivet nuts and blind rivet studs VNG 703
VNG 703

The force-controlled tool for the fast processing of large quantities in series production.

VNG 703

Existing HONSEL standard setting tools can continue to be used without any modifications. Manual hand setting tools as well as pneumatic-hydraulic or battery-powered setting tools can be used without restriction. The size range M5, M6 and M8 has been developed and proven.

The HONSEL crimpSEAL is manufactured according to the specific application, but can also be supplied from standard stock. Sealing performance is tested and guaranteed in accordance with HONSEL standard TL 6.0.01.0. Testing to customer-specific standards is also available on request.

The perfect fastener for every application

Whether in the automotive industry, mechanical and plant engineering, electrical engineering or metal enclosures - the crimpSEAL offers a solution wherever the highest level of sealing is required, as well as in static and dynamic applications in vehicle construction.

Questions about our products?

Contact us!

Application area: Electric vehicle chassis
Example: Battery housing in an electric vehicle.
