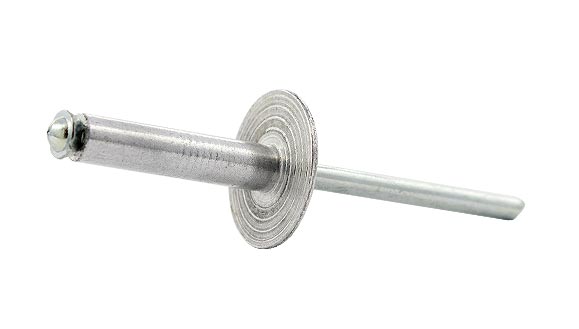

ARCO® body bound blind rivet, large dome head
Body bound blind rivets ARCO®
Product details
ø 4,8 mm
| Item no.: | Shaft length: | Grip range: | CAD: | |
|---|---|---|---|---|
| 10718048150 | 15,0 mm | 3,0 - 9,0 mm | 10718048150 | 10718048150-01 |
| 10718048210 | 21,0 mm | 8,0 - 15,0 mm | 10718048210 | 10718048210-01 |

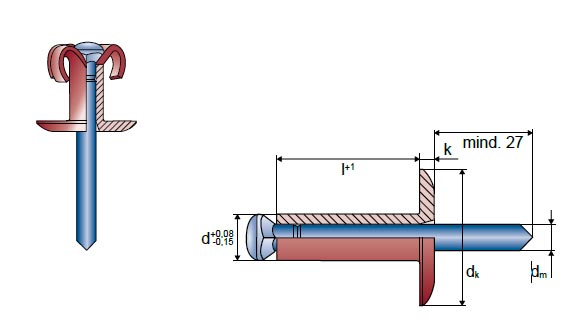

- Head diameter (dk): 16,0 mm
- Head height (k): 2,0 mm
- Mandrel diameter (dm): 2,8 mm
- Bore hole diameter: 5,2 mm
- Min. Shear strength: 1700 N
- Min. tensile strength: 1700 N
