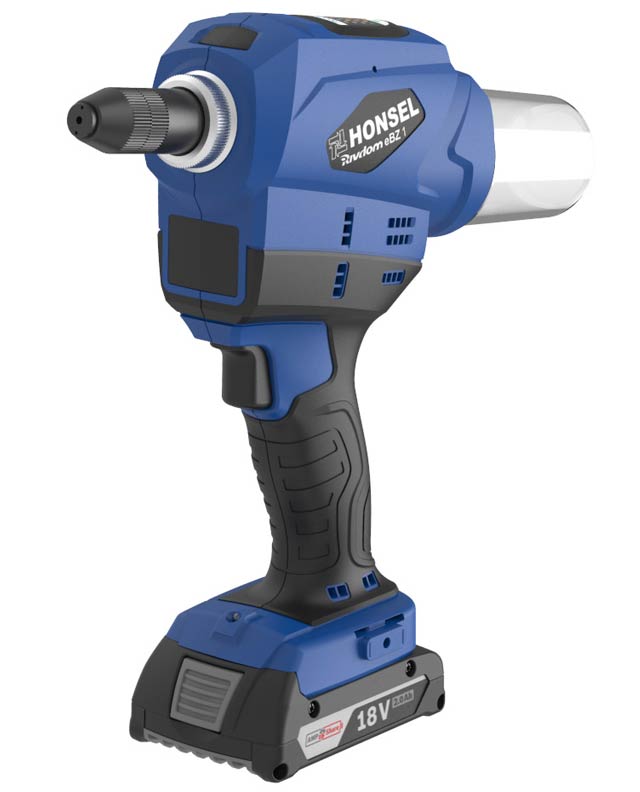

RIVDOM^® eBZ 1

Battery-powered setting tool for blind rivets

Small and light.
With a weight of only 1.6 kg incl. battery, very compact dimensions and excellent ergonomics, the tool is perfectly equipped for daily use and every installation situation.
Strong.
10.000 N setting force in combination with the new brushless motor makes it possible to reliably process any blind rivet up to 5.0 mm.
Fast.
With a pure setting process of less than one second, 30 blind rivets can be processed in 60 seconds. This means that the Rivdom eBZ 1 is twice as fast as comparable tools and saves more than 45 minutes working time per day!

Compact and extremely fast.

Battery-powered setting tool for blind rivets Rivdom eBZ 1

Weight
1.600 g

10.000 N
Setting force

25 mm
Stroke

For blind rivets
up to 5.0 mm
diameter

Setting process
< 1 second

30 rivets in
one minute possible

> 1.200
Fasteners
per 2.0 Ah
battery charge

210 mm
Length without
mandrel container

24 minutes
Charging time for
80 % charge
Fully charged in
35 minutes (2.0 Ah)

Industry optimized

The new battery riveter Rivdom eBZ 1. Developed, designed and produced by HONSEL.

Rivdom eBZ 1 is at home wherever large quantities are processed in the shortest possible time. Reliable, comfortable and stable.

The ideal tool for industrial series production.

Processing of 30 blind rivets possible in 60 seconds.

Processing blind rivets

metricinch

Artikelnr.:	2.4	3.0	3.2	4.0	4.8	5.0	6.0
aluminum	✓	✓	✓	✓	✓	✓	o
steel	✓	✓	✓	✓	✓	✓
stainless steel A2	✓	✓	✓	✓	✓	✓
copper	✓	✓	✓	✓	✓	✓

Artikelnr.:	2.4	3.0	3.2	4.0	4.8	5.0	6.0
aluminum	✓	✓	✓	✓	✓	✓	o
steel	✓	✓	✓	✓	✓	✓
stainless steel A2	✓	✓	✓	✓	✓	✓
copper	✓	✓	✓	✓	✓	✓

Artikelnr.:	3/32"	1/8"	5/32"	3/16"
aluminum	✓	✓	✓	✓
steel	✓	✓	✓	✓
stainless steel A2	✓	✓	✓	✓
copper	✓	✓	✓	✓

Artikelnr.:	3/32"	1/8"	5/32"	3/16"
aluminum	✓	✓	✓	✓
steel	✓	✓	✓	✓
stainless steel A2	✓	✓	✓	✓
copper	✓	✓	✓	✓

Processing possible, Processing optional possible

The latest motor technology

Rivdom eBZ 1 open with brushless BLDC direct current motor

High stability and weight savings

The newly developed brushless BLDC direct current motor in the Rivdom eBZ 1 guarantees an almost wear-free, permanent life cycle.

Individual return mode setting

When using manual return mode, the trigger has to remain pressed until the rivet is sheared. When the trigger is released, the tool moves back to the front starting position.

Watch video

Video with confirmation

You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .

Watch video

In addition, Rivdom eBZ 1 offer an automatic return mode. Here the trigger merely has to be pressed slightly to start the automatic setting process. Immediately after the drop in the measured force with the shearing of the rivet mandrel, the tool moves back automatically to the starting position to keep the riveting cycle as short as possible.

Automatic mandrel removal

Shortest process times – automatic mandrel removal

The pre-tensioning of the optionally available retainer nosepieces ensures that torn off rivet mandrels are "automatically" pushed into the collection container by the following mandrel - a tilting movement of the tool is therefore not necessary - the processing process is accelerated.

Retainer nosepieces

Watch video

Video with confirmation

You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .

Watch video

Good overview

Intuitive status notifications

Tool free maintenance

Clamping jaws and nosepieces can be replaced quickly and easily on the spot.

Special tools are not required when maintaining the Rivdom eBZ 1.

Auf dem neusten Stand

mit regelmäßigen Software-Updates

Rivdom eBZ 1 with SD card slot for software updates

Safety

Integrated mandrel safety switch in accordance with the Machinery Directive.

Even more compact without mandrel container. Reliable processing even in limited installation situations.

Perfected battery management

The powerful HONSEL Li ion batteries are fully charged in less than 30 minutes – the 90%
charge is reached after only approx. 20 minutes – so that the charging cycle is always shorter
than the battery-consuming working time!

Learn more

Sturdy and flexible

The innovative system packaging solution. The HONSEL L-Boxx is also compatible with the L-Boxxes from other manufacturers.

HONSEL L-Boxx

Book a demonstration!

Demonstration of our setting tools Rivdom

We would be happy to show you Rivdom eBZ 1 and answer any questions you may have. Choose between a demonstration at your site, a visit to our site or opt for an online presentation.

Book a demonstration

Technical facts

Working range: Blind rivets up to 5.0 mm diameter, all materials
Stroke: 25 mm
Working power: 10.000 N
Max. diameter of mandrel: 3.4 mm
Charging time: < 30 min
Weight incl. battery: 1.6 kg (3.5 lbs)

Contact us!

Questions about our products?

Contact us!

Scope of delivery

1x Rivdom eBZ 1 battery riveter
4x standard nosepieces in box
1x stud collector “L”
1x each belt clip, hanger bracket and cover cap

Item no. 320420000000-010-1 (1x battery 20V/2Ah)
Item no. 320420000000-020-1 (2x battery 20V/2Ah)

Operation manual

Rivdom eBZ 1 operating instructions as PDF

Extended warranty

We are convinced of the quality of our HONSEL battery riveters. That is why we grant a 24-month manufacturer's warranty on all current models.

Extended warranty

Notification of updates

Get the most out of your HONSEL tool by being informed about the latest firmware updates.

Tool Update

Accessories and spare parts

Genuine spare parts and accessories for your Rivdom eBZ 1.

Learn more

Troubleshooting

All tools must be checked and maintained regularly. Various problems can be solved with this guide.

Troubleshooting
