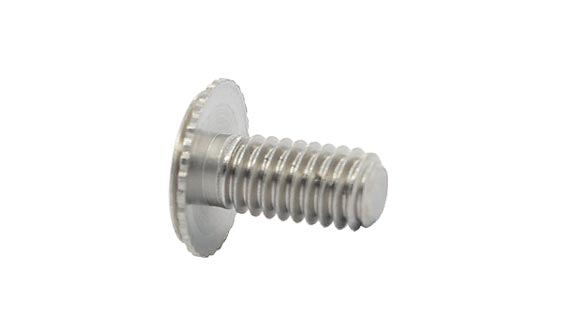

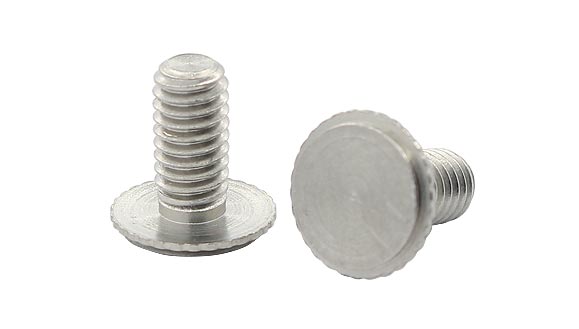

Concealed head stud V-CHC

Self clinching studs

Product details

M3
Item no.: Length (L) ±0,4 mm (mm): CAD:
10480030006 6,0 mm
10480030008 8,0 mm
10480030010 10,0 mm
10480030012 12,0 mm
10480030016 16,0 mm
10480030020 20,0 mm

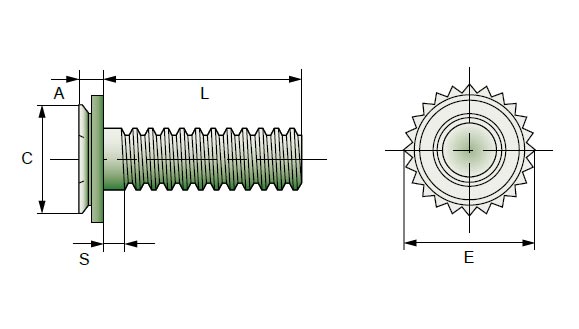

  • Head diameter (E): 5,21 ±0,25 mm
  • min. plate thickness: 1,6 mm
  • Drill hole: 4,37 +0,08 mm
  • Shaft length (A): 1,04 mm
  • Diameter of shank (C): 4,35 mm
  • min. distance edge to hole center: 4,0 mm
  • Drill depth: 1,1 mm
  • Insertion force aluminium: 6,2
  • Press-out strength aluminium (N): 575
  • Torsional strength aluminium (Nm): 0,50
  • Insertion force steel (kN): 8,0
  • Press-out strength steel (N): 1065
  • Torsional strength steel (Nm): 0,50

Catalogue data as PDF

Please wait until the CAD models are generated.
CAD data to
Concealed head stud V-CHC

M4
Item no.: Length (L) ±0,4 mm (mm): CAD:
10480040006 6,0 mm
10480040008 8,0 mm
10480040010 10,0 mm
10480040012 12,0 mm
10480040016 16,0 mm
10480040020 20,0 mm
10480040025 25,0 mm
  • Head diameter (E): 8,33 ±0,25 mm
  • min. plate thickness: 1,6 mm
  • Drill hole: 7,37 +0,08 mm
  • Shaft length (A): 1,04 mm
  • Diameter of shank (C): 7,35 mm
  • min. distance edge to hole center: 5,6 mm
  • Drill depth: 1,10 mm
  • Insertion force aluminium: 12,5
  • Press-out strength aluminium (N): 800
  • Torsional strength aluminium (Nm): 2,00
  • Insertion force steel (kN): 17,8
  • Press-out strength steel (N): 1200
  • Torsional strength steel (Nm): 2,00

Catalogue data as PDF

Please wait until the CAD models are generated.
CAD data to
Concealed head stud V-CHC

M5
Item no.: Length (L) ±0,4 mm (mm): CAD:
10480050010 10,0 mm
10480050012 12,0 mm
10480050016 16,0 mm
10480050020 20,0 mm
10480050025 25,0 mm
  • Head diameter (E): 8,89 ±0,25 mm
  • min. plate thickness: 1,6 mm
  • Drill hole: 7,93 +0,08 mm
  • Shaft length (A): 1,04 mm
  • Diameter of shank (C): 7,90 mm
  • min. distance edge to hole center: 6,4 mm
  • Drill depth: 1,10 mm
  • Insertion force aluminium: 17,8
  • Press-out strength aluminium (N): 930
  • Torsional strength aluminium (Nm): 3,60
  • Insertion force steel (kN): 22,2
  • Press-out strength steel (N): 1290
  • Torsional strength steel (Nm): 3,60

Catalogue data as PDF

Please wait until the CAD models are generated.
CAD data to
Concealed head stud V-CHC
