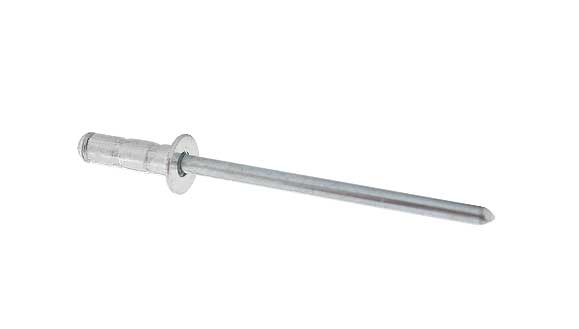

Multigrip blind rivet OPTO® aluminium/steel, countersunk head
Multigrip blind rivets OPTO®
Video with confirmation
You can watch this YouTube video directly on our website. We would like to point out that personal data (e.g. IP address) are transmitted to YouTube. Data protection .
Product details
⌀ 3,2 mm
| Item no.: | Shaft length: | Grip range (mm): | CAD: |
|---|---|---|---|
| 10600320097 | 9,7 | 2,4 - 6,4 mm |
- Head diameter (dk): 5,4 mm
- Mandrel diameter (dm): 1,8 mm
- Bore hole diameter: 3,3 mm
- Min. tensile strength: 900 N
- Min. Shear strength: 670 N
⌀ 4,0 mm
| Item no.: | Shaft length: | Grip range (mm): | CAD: |
|---|---|---|---|
| 10600400113 | 11,3 | 2,9 - 7,9 mm |
- Head diameter (dk): 7,0 mm
- Mandrel diameter (dm): 2,3 mm
- Bore hole diameter: 4,1 mm
- Min. tensile strength: 1320 N
- Min. Shear strength: 980 N
⌀ 4,8 mm
| Item no.: | Shaft length: | Grip range (mm): | CAD: |
|---|---|---|---|
| 10600480169 | 16,9 | 6,4 - 12,7 mm |
- Head diameter (dk): 9,0 mm
- Mandrel diameter (dm): 2,7 mm
- Bore hole diameter: 4,9 mm
- Min. tensile strength: 2300 N
- Min. Shear strength: 1500 N
