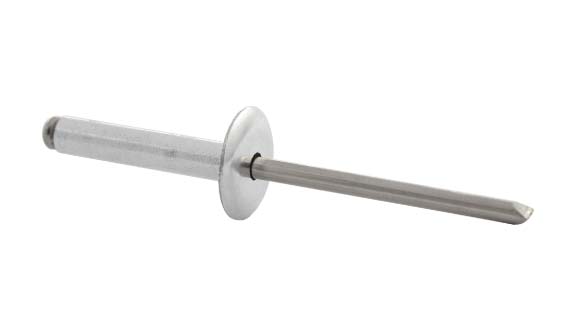

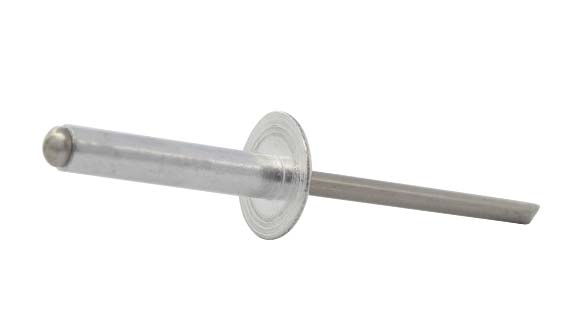

Standard rivet ALFO Alu-stainless steel, large dome head K14, technical approved
Blind rivets with national technical approval
Product details
ø 5,0 mm
| Item no.: | Shaft length: | Grip range: | CAD: | |
|---|---|---|---|---|
| 13762050080/250 | 8,0 mm | 2,0 - 5,0 mm | 13762050080/250 | 13762050080-250-1 |
| 13762050100/250 | 10,0 mm | 4,0 - 6,5 mm | 13762050100/250 | 13762050100-250-1 |
| 13762050120/250 | 12,0 mm | 6,0 - 8,0 mm | 13762050120/250 | 13762050120-250-1 |
| 13762050140/250 | 14,0 mm | 7,5 - 10,0 mm | 13762050140/250 | 13762050140-250-1 |
| 13762050160/250 | 16,0 mm | 9,5 - 12,0 mm | 13762050160/250 | 13762050160-250-1 |
| 13762050180/250 | 18,0 mm | 11,5 - 13,5 mm | 13762050180/250 | 13762050180-250-1 |
| 13762050200/250 | 20,0 mm | 12,0 - 15,5 mm | 13762050200/250 | 13762050200-250-1 |
| 13762050250/250 | 25,0 mm | 15,0 - 20,5 mm | 13762050250/250 | 13762050250-250-1 |

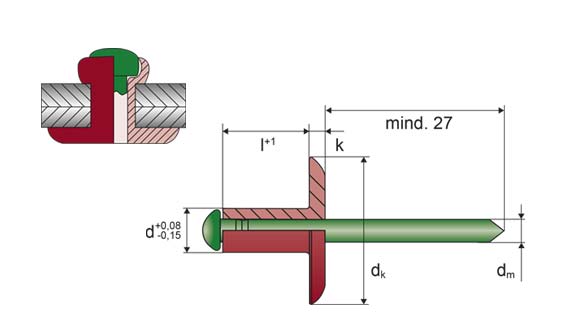

- Head diameter (dk): 14,0 mm
- Head height (k): 1,50 mm
- Mandrel diameter (dm): 2,7 mm
- Bore hole diameter: 5,1 mm
- Min. Shear strength: 1820 N
- Min. tensile strength: 2500 N
